Brief Introduction

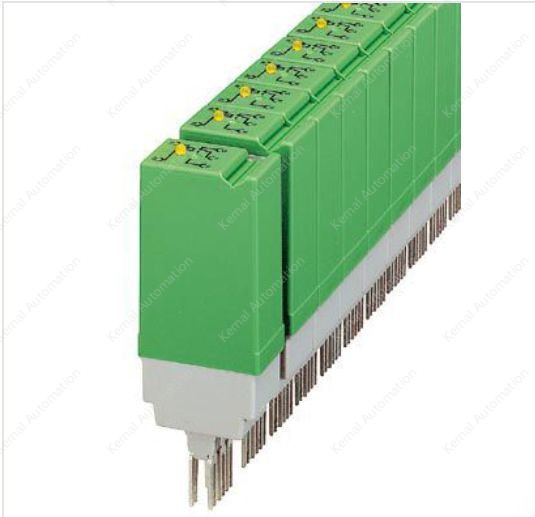

REL-MR-BL-24DC/21HC

Product Type: Single Relay.Electrical characteristicsInput data: The input voltage is rated at 24V DC and the input voltage range is 16.8V DC to 54V DC. The drive is monostable and non-polarized, with a typical input current of 17mA, a typical response time of 8ms, and a typical release time of 6ms at the rated input voltage.Output data: 1 changeover contact of the contact switching type, single contact of the switching contact type, AgNi of the contact material. The maximum switching voltage is 250V AC/DC, the minimum switching voltage is 5V (at 24mA), the limited continuous current is 16A, the maximum inrush current is 30A (300ms), the minimum switching current is 10mA (at 12V), and the maximum power rating (resistance load) is 384W (24V DC), 58W (48V DC), 48W (60V DC), 50W (110V DC), 80W (220V DC), 4000VA (250V). AC), with a switching capacity of 2A (at 24V, DC13), 1.5A (at 230V, AC15).
